High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1 ชิ้น
MOQ
negotiated
ราคา
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
พิมพ์: tci tricone bit, Mine Sieving Mesh
แอปพลิเคชัน: น้ำมัน, ก๊าซ, บ่อน้ำ, การขุดเจาะบ่อน้ำมันเพชร
สี: สีดำหรือตามความต้องการของลูกค้า
การก่อตัว: อ่อนถึงปานกลาง หินดินดาน เช่น หินดินดานแข็ง หินปูนอ่อน เป็นต้น
ข้อได้เปรียบ: คุณภาพสูงและบริการที่ดีที่สุด ความแข็งแรงสูง ทนทาน และประสิทธิภาพสูง
เน้น:

6 1/2 inch tungsten carbide drill bit

,

IADC 837 tricone roller bit

,

tricone rock bit with carbide inserts

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: GLORYTEK
ได้รับการรับรอง: CE,SGS,TUV
หมายเลขรุ่น: 6 3-4'' IADC517
การชำระเงิน
รายละเอียดการบรรจุ: บรรจุภัณฑ์ส่งออกมาตรฐาน
เวลาการส่งมอบ: 5-7 วันทำการ
เงื่อนไขการชำระเงิน: L/C,D/A,D/P,T/T,Western Union,MoneyGram
สามารถในการผลิต: 2,000 ชิ้นต่อเดือน
รายละเอียดสินค้า
High strength Tricone Rock Bit 6 1-2'' For Soft To Hard Formation
1. Description:

Tricone drill bits has been in continuous use in the water well,oil & gas industry, and is still being improved!

We have a wide selection of tricone bits - there’s a bit for every application.our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.

Tricone bits cut faster and last longer in all ground conditions and especially varying ground conditions.Higher penetration rates and Higher quality.

The 6 1-2 '' blast hole bits are designed for drilling soft to medium hard formations, with rock compressive.Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.

2. Applications:

Wry soft formation with low compressive strength and high drillability, such as:

shale, clay, sandstone, gravel, etc.

3. Specifications:
Bit size API thread recommended torque
in mm in KN.M
6 152.4 3 1/2 9. 5-12.2
6 1/8 155.6 3 1/2 9. 5-12.2
6 1/4 158.8 3 1/2 9. 5-12.2
6 1/2 165.1 3 1/2 9. 5-12.2
6 5/8 168.3 3 1/2 9. 5-12.2
6 3/4 171.5 3 1/2 9. 5-12.2
7 1/2 190.5 4 1/2 16. 3〜21. 7
7 5/8 193.7 4 1/2 16. 3〜21. 7
7 7/8 200 4 1/2 16. 3〜21. 7
8 3/8 212.7 4 1/2 16. 3〜21. 7
8 1/2 215.9 4 1/2 16. 3〜21. 7
8 5/8 219.1 4 1/2 16. 3〜21. 7
8 3/4 222.3 4 1/2 16. 3〜21. 7
9 1/2 241.3 6 5/8 38〜43. 4
9 5/8 244.5 6 5/8 38〜43. 4
9 7/8 250.8 6 5/8 38〜43. 4
10 1/2 266.7 6 5/8 38〜43. 4
10 5/8 269.9 6 5/8 38〜43. 4
11 279.4 6 5/8 38〜43. 4
115/8 295.3 6 5/8 38〜43. 4
12 304.8 6 5/8 38〜43. 4
12 1/4 311.2 6 5/8 38〜43. 4
12 5/16 312.7 6 5/8 38〜43. 4
12 3/8 314.3 6 5/8 38〜43. 4
12 7/16 315.9 6 5/8 38〜43. 4
12 5/8 320.7 6 5/8 38〜43. 4
13 1/8 333.4 6 5/8 38〜43. 4
13 1/2 342.9 6 5/8 38〜43. 4
13 5/8 346.1 6 5/8 38〜43. 4
13 3/4 349.3 6 5/8 38〜43. 4
4. Packaging & Shipping:

Packaging for tricone drill bit for water well drilling is in carton box.
Samples will be shipped by express, batch products will be shipped by sea;
3-5 days for samples, batch products are depend on the order quantity.

5. Our advantage:
  • We have CE,SGS certificate, we guarantee product quality, delivery time and payment in safe; button tooth used tricone bits
  • 20+ years manufacturing experience of drill bits;
  • Powerful technology support and mature manufacturing experience;
  • Strict quality control before delivering;
  • 24 hours online service;
  • We can provide customized products with special requirements.

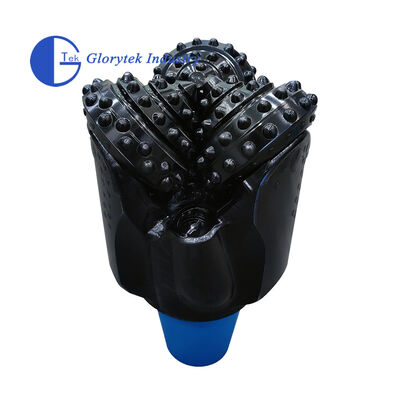

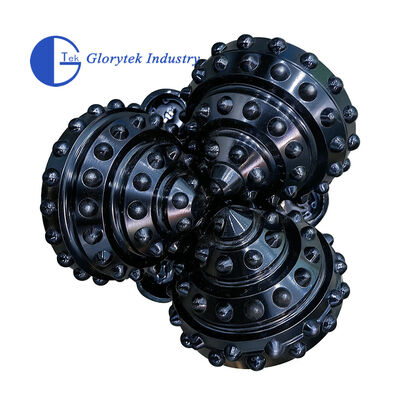

The Photo of products

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1

Company Profile

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
