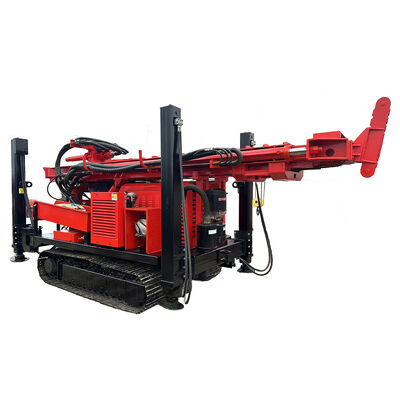

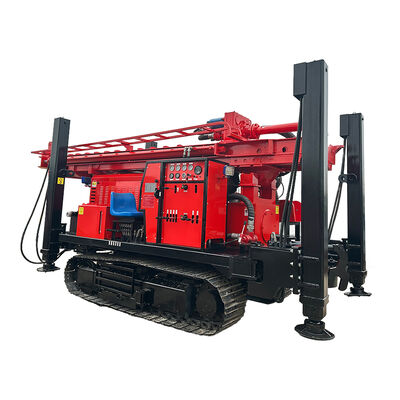

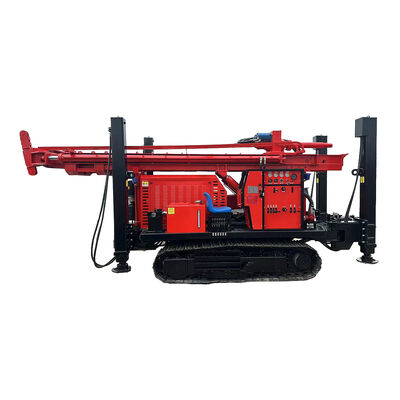

GL350S Fully Hydraulic Crawler Type Borehole Drill Rig
Description:
The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.
nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.
It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.
Tehnical Parameter:
| Technical Parameter | |
| Max drilling depth | 350m |
| Drilling diameter | 105-325mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102mm |
| Main shaft pressure | 6T |
| Lifting force | 26T |
| Fast lifting speed | 24m/min |
| Fast forwarding speed | 50m/min |
| Rotary torque | 9900 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 8.5T |
| Dimension | 5.9m x 1.8m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 90KW |
